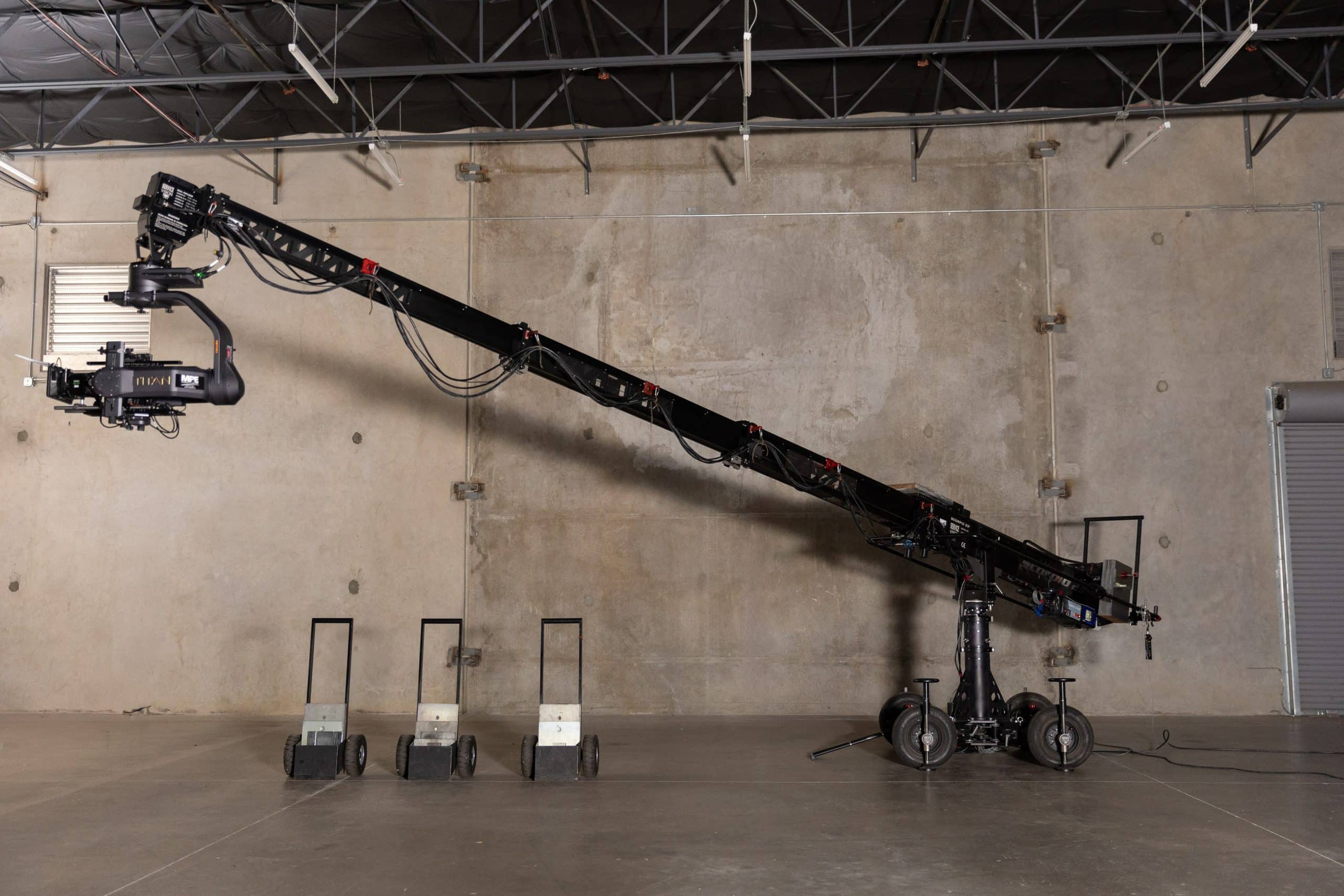

The Scorpio 23 Telescoping Crane comes with a Motocrane Titan Head, This is a high-performance stabilized remote head built for heavy payloads and demanding camera movements. It delivers exceptionally smooth pan, tilt, and roll control, along with 3 axis integrated lens control. Designed for speed and reliability, the Titan Head excels in dynamic shooting environments where accuracy and stability are critical. The Titan Head also features a built in shake generator, to add dynamic energy to shots.
Basic Specs
- Maximum Reach (from post): ~23 ft (7.1 m)
- Minimum Reach (from post, retracted): ~5 ft (1.5 m)
- Telescopic Range: ~18 ft 5 in (5.6 m)
- Telescoping Speed: up to ~5 ft 10 in/sec (~1.8 m/s)
- Max Lens Height:
• Underslung: ~21 ft 11 in
• Overslung: ~26 ft 2 in - Max Tilt Angle: ±~55°
- Base Footprint (approx): ~6 ft 2 in (L) × ~2 ft 6 in (W)
- Arm Dimensions:
• Retracted: ~11 ft back-to-nose
• Extended: ~29 ft back-to-nose - Weights:
• Full (with counterweights/payload): ~2,425 lbs
• Empty crane: ~1,322 lbs - Payload Capacity: ~154 lbs total (typical combined overslung/underslung range 70 lbs/132 lbs reported)
